With the availability of compact and portable air inflatable machines, inflating objects while on the go has never been easier. Handheld models powered by batteries or rechargeable batteries provide the ultimate convenience for camping trips, beach outings, or any situation where access to power outlets may be limited. These portable machines allow for hassle-free inflation of air mattresses, inflatable kayaks, and other travel essentials wherever you are.
An Air inflatable machine is an invaluable tool for efficiently and rapidly inflating a wide range of objects. With its powerful air pressure and various nozzle attachments, it can quickly fill air mattresses, inflatable toys, and other inflatable items. The machine's high-speed inflation capability ensures that items are ready for use in a matter of minutes, saving time and effort compared to manual inflation methods.
There’re mainly 2 types of air inflatable machine in the market, one is for air bubble film like gourd film, air pillow bag, etc. One is for air column film, like air column bag roll, air column roll.
Due to different features of air bubble film and air column film , they need different air inflatable machine.
The air bubble film’s thickness ranges from 15um-40um normally, and most are HDPE materials which is weak adhesiveness . So it requests low power of the air cushion machine, and it can be inflated easily, without external air supply.
The air column’s thickness ranges from 45um-80um normally, and the material is LDPE which is stronger adhesion. It requests stronger power to inflate, and need external air supply like air compressor.
What’s more, the design is different between air bubble film and air column film, they are not able to use the same air inflatable machine .

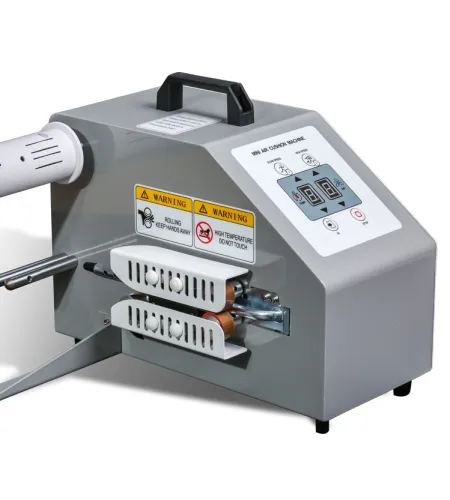

The air inflatable machine is simple designed, everyone can operate it easily. Take the air inflatable machine for air bubble film as an example.:
Step 1: Power on:
a. Connect the power plug to the single-phase three wire socket with grounding protection;
b.Turn on the power switch1;
Step 2、 Put the roll on the machine
Put the roll on the discharge shaft, keep the air inlet close to the machine. Pull the film, let the film get through the guide stick.
Step 3: Air duct
Let the air nozzle enter the air duct
Step 4: Let the film go through the machine
One hand press the “IN” button, one hand pull the film forward, do these 2 actions at the same time. Stop until the film gets through the belt cover.
Step 5: Setting
Set the correct parameter of the air and temperature, and then start the machine.
