Types of Air cushion machine
There’re mainly 2 types of air cushion machine in the market, one is for air bubble film like gourd film, air pillow bag, etc. One is for air column film, like air column bag roll, air column roll.
Due to different features of air bubble film and air column film ,they need different air cushion machine.
The air bubble film’s thickness ranges from 15um-40um normally, and most are HDPE materials which is weak adhesiveness . So it requests low power of the air cushion machine, and it can be inflated easily, without external air supply.
The air column’s thickness ranges from 45um-80um normally, and the material is LDPE which is stronger adhesion. It requests stronger power to inflate, and need external air supply like air compressor.
What’s more, the design is different between air bubble film and air column film, they are not able use the same air cushion machine.
Operation of air cushion machine

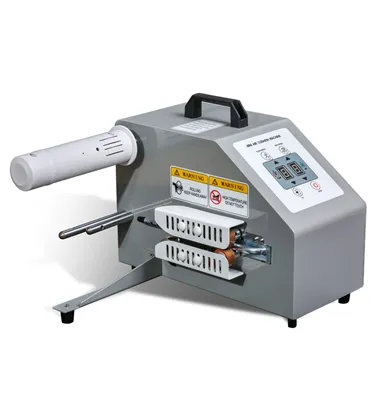

The air cushion machine is simple designed, everyone can operate it easily. Take the air cushion machine for air bubble film as an example.:
Step 1: Power on:
a. Connect the power plug to the single-phase three wire socket with grounding protection;
b. Turn on the power switch1;
Step 2、 Put the roll on the machine
Put the roll on the discharge shaft, keep the air inlet close to the machine. Pull the film, let the film get through the guide stick.
Step 3: Air duct
Let the air nozzle enter the air duct
Step 4:, Let the film go through the machine
One hand press the “IN” button, one hand pull the film forward, do these 2 action at the same time. Stop until the film gets through the belt cover.
Step 5: Setting
Set the correct parameter of the air and temperature, and then start the machine.
Efficient Material Utilization with Air Cushion Machines
Air cushion machines optimize material utilization by generating air-filled cushions as required. Unlike traditional packaging materials that may result in excess waste, these machines ensure precise and efficient use of air cushion film. This not only reduces material costs but also contributes to sustainability efforts, aligning businesses with environmentally conscious practices.
Advantage of air cushion machine
Below are advantages of the air cushion machine for air bubble film series:
1. It can be used on the workbench. According to different shape of the films, different air cushion films can be made. Light and complete functions make you satisfied.
2. Compared with other cushion packaging, the air cushion film can save a lot of storage space and cost
3. The machine weighs only normally ranges from 7kg-10kg. Such a small machine can be placed on any workbench or fixed on the wall, saving more space.
4. No external air supply is required.
5. The built-in small air pump can make the inflation volume of the air cushion reach 90%, and the noise is extremely low.
6. Different air cushion films can be produced to meet different needs
7. Easy to operate, it only takes a few seconds to replace the cushion film
